Elevate Your Outdoor Event with a WeatherPort Event Structure
Use our event seating capacity guide to plan the perfect outdoor event!
WeatherPort has been providing outdoor event structures for 50 years. In that amount of time, we have worked with many event and party planners, party rental companies, party supply companies, and venues to provide temporary or permanent outdoor event structures. With regards to planning an outdoor event, one of the most common questions we get asked is, “how big of a structure do I need to fit a specified number of attendees?” We hope the below seating capacity chart will be helpful for determining the size of building needed to seat a specified number of guests.
Our engineered structures offer an unmatched level of protection and durability against all types of inclement weather. Whether it is a small outdoor venue with just a handful of very special guests, or a large wedding of 500-plus people, WeatherPort fabric buildings are the perfect solution for creating a unique outdoor experience guests will remember for years to come.
Canopy Seating Capacity
Dimensions | Sq. Footage | Standing | Buffet Style |
Dining (Long Table) |
---|---|---|---|---|
16′ x 16′ | 256 | 52 | 37 | 25 |
20′ x 20′ | 400 | 80 | 57 | 40 |
Hexapae Seating Capacity
Dimensions | Sq. Footage | Standing | Buffet Style |
Dining (Long Table) |
---|---|---|---|---|
16′ diameter | 240 | 48 | 35 | 24 |
30′ diameter | 590 | 118 | 84 | 59 |
Octapae Seating Capacity
Dimensions | Sq. Footage | Standing | Buffet Style |
Dining (Long Table) |
---|---|---|---|---|
35′ diameter | 840 | 168 | 120 | 84 |
40′ diameter | 1,120 | 224 | 160 | 112 |
Jubilee Seating Capacity
Dimensions | Sq. Footage | Standing | Buffet Style |
Dining (Long Table) |
Dining (Round Table) |
---|---|---|---|---|---|
15’x 10′ | 150 | 50 | 22 | 15 | 12 |
15′ x 20′ | 300 | 60 | 43 | 30 | 25 |
15′ x 30′ | 450 | 90 | 65 | 45 | 38 |
15′ x 40′ | 600 | 120 | 86 | 60 | 50 |
16′ x 10′ | 160 | 32 | 23 | 16 | 13 |
16′ x 20′ | 320 | 64 | 46 | 32 | 26 |
16′ x 30′ | 480 | 96 | 68 | 48 | 40 |
16′ x 40′ | 640 | 128 | 91 | 64 | 53 |
20′ x 10′ | 200 | 40 | 28 | 20 | 17 |
20′ x 20′ | 600 | 120 | 86 | 60 | 50 |
20′ x 30′ | 600 | 120 | 86 | 60 | 50 |
20′ x 40′ | 800 | 160 | 114 | 80 | 67 |
21′ x 10 | 210 | 42 | 30 | 21 | 18 |
21′ x 20′ | 420 | 84 | 60 | 42 | 35 |
21′ x 30′ | 630 | 126 | 90 | 63 | 53 |
21′ x 40′ | 840 | 168 | 120 | 84 | 70 |
26′ x 20′ | 520 | 104 | 74 | 52 | 43 |
26′ x 30′ | 780 | 156 | 112 | 78 | 65 |
26′ x 40′ | 1,040 | 208 | 149 | 104 | 87 |
26′ x 50′ | 1,300 | 260 | 186 | 130 | 108 |
30′ x 10′ | 300 | 60 | 43 | 30 | 25 |
30′ x 20′ | 600 | 120 | 86 | 60 | 50 |
30′ x 30′ | 900 | 180 | 128 | 90 | 75 |
30′ x 30′ | 900 | 180 | 128 | 90 | 75 |
30′ x 40′ | 1,200 | 240 | 171 | 120 | 100 |
31′ x 10′ | 310 | 62 | 44 | 31 | 26 |
31′ x 20′ | 620 | 124 | 88 | 62 | 52 |
31′ x 30′ | 930 | 186 | 133 | 93 | 78 |
31′ x 40′ | 1,240 | 248 | 177 | 124 | 103 |

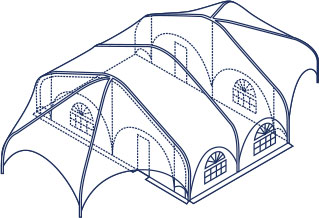

Hexagem Seating Capacity
Dimensions | Sq. Footage | Standing | Buffet Style |
Dining (Long Table) |
Dining (Round Table) |
---|---|---|---|---|---|
30x 10’J/30’H | 890 | 178 | 127 | 89 | 74 |
30x 20’J/30’H | 1,190 | 238 | 170 | 119 | 99 |
30x 30’J/30’H | 1,490 | 298 | 213 | 149 | 124 |
30x 40’J/30’H | 1,790 | 358 | 256 | 179 | 149 |
If you would like further information or the opportunity to discuss your upcoming outdoor event with one of our friendly building specialists, contact us today!
*Capacity does not allow for aisles, dance floor, service area, etc.
